| Tên thương hiệu: | GC |
| Số mẫu: | GC-UV-B |
| MOQ: | 1 bộ |
| giá bán: | Negotiated |
| Thời gian giao hàng: | trong kho |
| Điều khoản thanh toán: | TT |

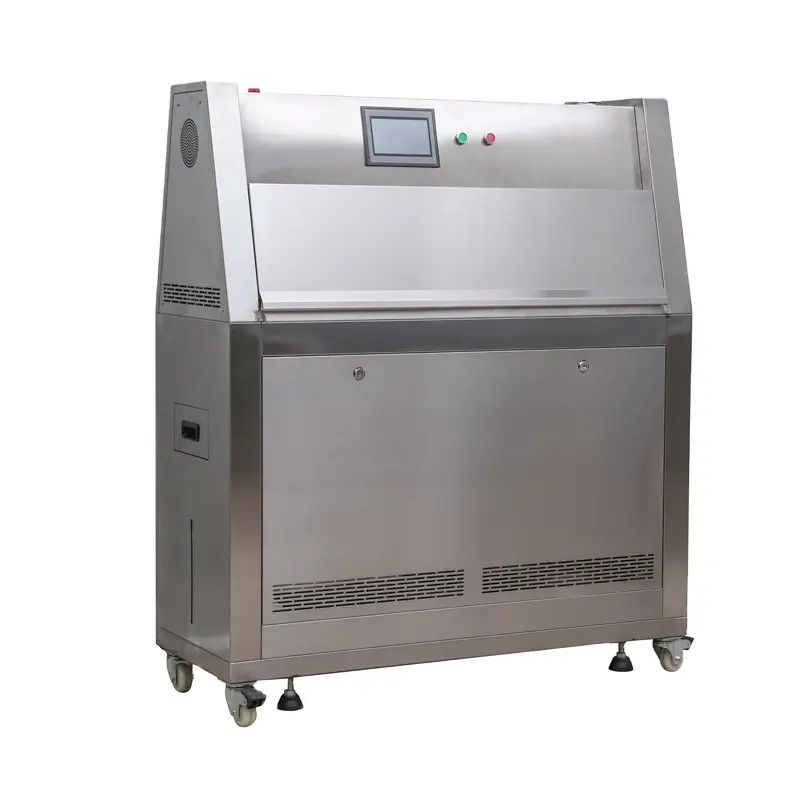

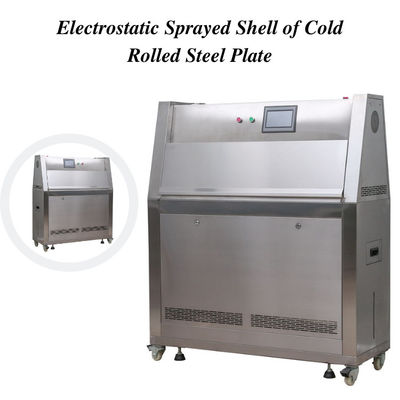

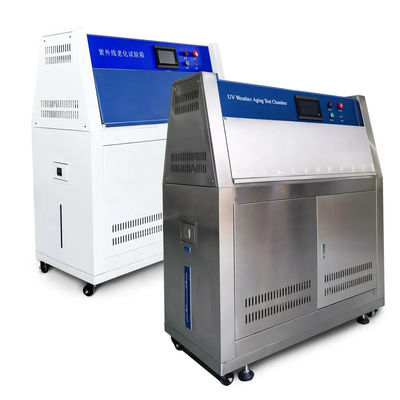

UV Aging Test Chamber
Product Introduction
The test equipment simulates the damage caused by the sun's ultraviolet light, and the weather resistance test is carried out on the material by exposing the tested material to light under controlled high temperature. It uses ultraviolet lamps to simulate the radiation of sunlight, and simulates dew and rain through condensation and water spraying. In just a few days or weeks, the ultraviolet irradiation equipment can reproduce the effects of outdoors that take months or even years. Damage that takes time to occur, including fading, color change, tarnish, chalking, cracking, cracks, wrinkling, blistering, embrittlement, strength reduction, oxidation, etc. The test results can be used to select new materials and improve existing There is a change in the material, or the formulation of the evaluation material.
Test Standards
| Model | GC-UV-B | |
| Dimensions of the working chamber (cm) | 45*117*50CM | |
| Boundary dimension(cm) | 70*135*145CM | |
| Power | 4.0(KW) | |
| Performance index |
Temperature range | Rt+10ºC~70ºC |
| Humidity range | ≥95%R.H | |
| Distance between lamps | 35mm | |
| Distance between sample and lamp | 50mm | |
| Support quantity of the sample | Length 300mm* width 75mm, about 48 pieces | |
| Ultraviolet wavelengths | 290nm~400nm UV-A340,UV-B313,UV-C351( instructions at time of order ) | |
| Lamp power | 40W | |
| Control system |
Controllor | touch screen microcomputer controller |
| Illumination heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
| Condensation humidification system | All stainless steel shallow surface evaporative humidifier | |
| Blackboard temperature | Bimetal blackboard thermometer | |
| Water supply system | Automatic control for humidification and water supply | |
| Exposure method | Exposure to moisture condensation, exposure to light radiation | |
| Safety protection | Leakage, short circuit, over temperature, water shortage, over current protection | |
|
|
| Tên thương hiệu: | GC |
| Số mẫu: | GC-UV-B |
| MOQ: | 1 bộ |
| giá bán: | Negotiated |
| Chi tiết bao bì: | gói gỗ |
| Điều khoản thanh toán: | TT |
UV Aging Test Chamber
Product Introduction
The test equipment simulates the damage caused by the sun's ultraviolet light, and the weather resistance test is carried out on the material by exposing the tested material to light under controlled high temperature. It uses ultraviolet lamps to simulate the radiation of sunlight, and simulates dew and rain through condensation and water spraying. In just a few days or weeks, the ultraviolet irradiation equipment can reproduce the effects of outdoors that take months or even years. Damage that takes time to occur, including fading, color change, tarnish, chalking, cracking, cracks, wrinkling, blistering, embrittlement, strength reduction, oxidation, etc. The test results can be used to select new materials and improve existing There is a change in the material, or the formulation of the evaluation material.
Test Standards
| Model | GC-UV-B | |
| Dimensions of the working chamber (cm) | 45*117*50CM | |
| Boundary dimension(cm) | 70*135*145CM | |
| Power | 4.0(KW) | |
| Performance index |
Temperature range | Rt+10ºC~70ºC |
| Humidity range | ≥95%R.H | |
| Distance between lamps | 35mm | |
| Distance between sample and lamp | 50mm | |
| Support quantity of the sample | Length 300mm* width 75mm, about 48 pieces | |
| Ultraviolet wavelengths | 290nm~400nm UV-A340,UV-B313,UV-C351( instructions at time of order ) | |
| Lamp power | 40W | |
| Control system |
Controllor | touch screen microcomputer controller |
| Illumination heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
| Condensation humidification system | All stainless steel shallow surface evaporative humidifier | |
| Blackboard temperature | Bimetal blackboard thermometer | |
| Water supply system | Automatic control for humidification and water supply | |
| Exposure method | Exposure to moisture condensation, exposure to light radiation | |
| Safety protection | Leakage, short circuit, over temperature, water shortage, over current protection | |
